Machines

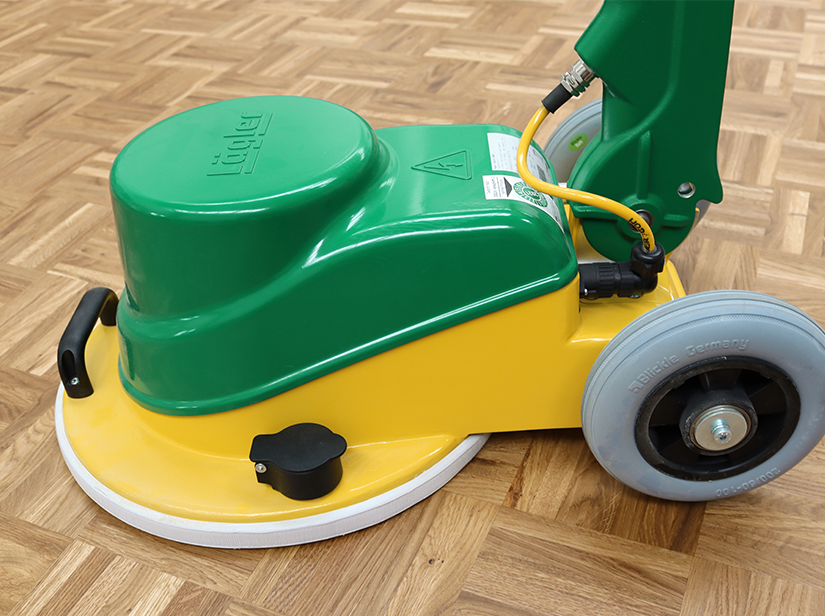

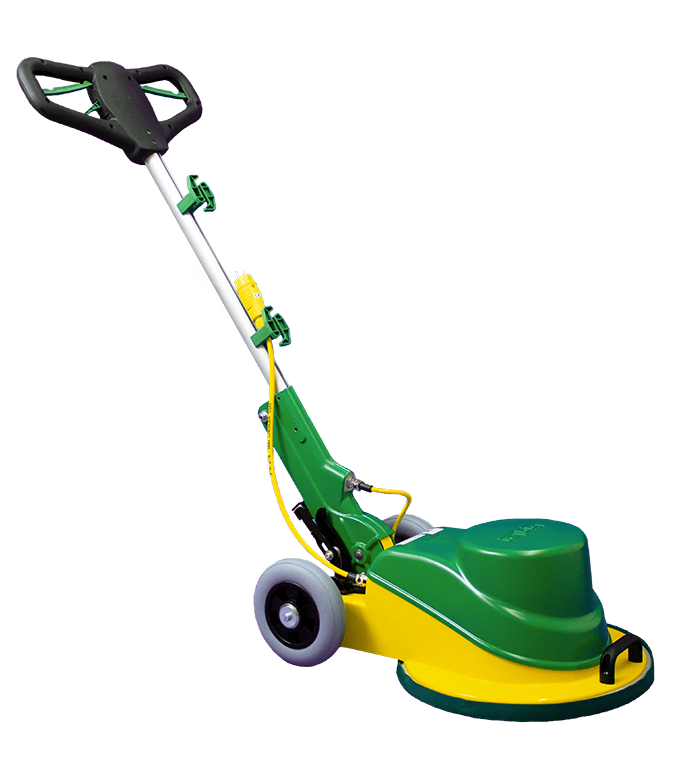

SINGLE - The single disc sanding machine

No matter whether it's about achieving a good surface quality on wooden floors or efficient subfloor treatment - the SINGLE is the all-rounder!

It is the reliable single disc sanding machine for both, fine and coarse applications. Thanks to the dust-proof motor and the very robust metal gear, it can withstand even heavy loads. Due to this construction it is almost maintenance-free.
The continuously adjustable working angle of the handle allows flexible adaptation to the user and room conditions.

In addition, the ergonomically shaped handle allows the SINGLE to be fully controlled in every situation.

An integrated adapter permits an external vacuum cleaner to be connected.

Operating Instructions

Features


Technical Data*
Motor: single-phase alternating current with no-voltage release
Voltage: 230 V / 50 Hz
Motor power: 1.2 kW
Necessary fuse protection of mains supply: at least 16 A
Diameter of disc: 406 mm (16’’)
Speed of disc: approx. 180 1/min (rpm)
Overall weight of machine: 45 kg ( approx. 99 lbs)
Particularities
✔ Powerful motor with thermal overload protection
✔ Versatile use
✔ Universal disc for sanding, padding and cleaning
✔ Height of the handle infinitely adjustable
✔ Quick change of the discs
✔ Very robust metal planetary gear
✔ Integrated adapter for external dust extraction directly on the machine housing
*) The SINGLE is available on request in other versions (depending on the power supply in your country and the area of application).

Applications with the SINGLE

The SINGLE is a true all-rounder.

In addition to sanding, padding and dry cleaning of wooden floors, the single-disc sanding machine is also suitable for intensive dry subfloor treatment due to its sophisticated technology and robust construction in combination with the appropriate accessories.

Applications

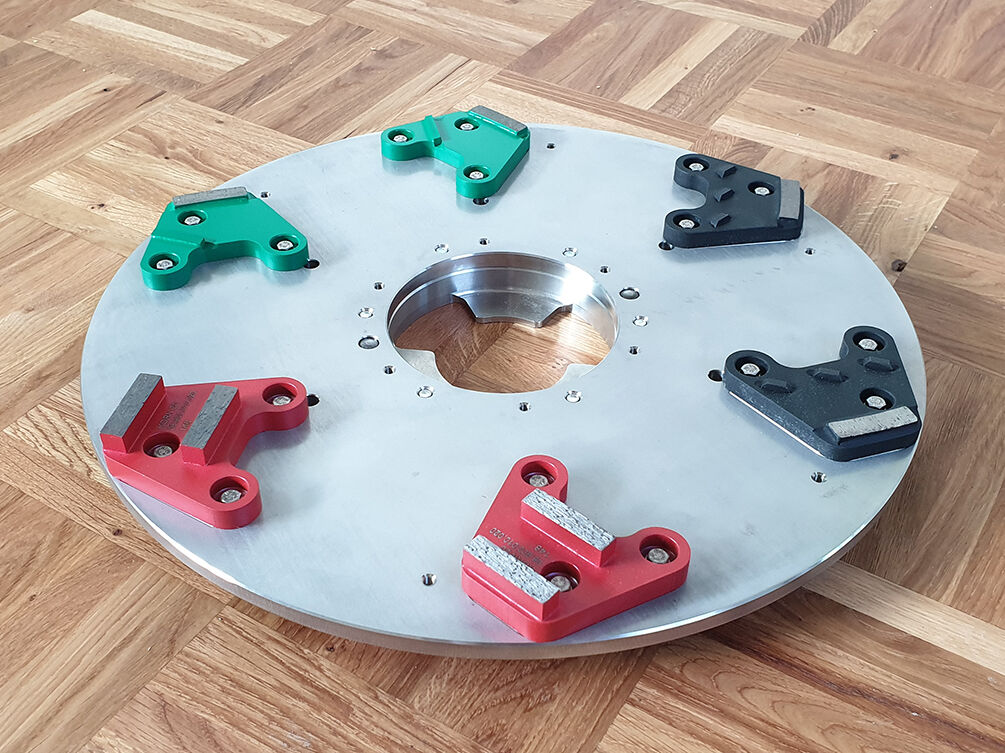

Sanding and Milling Tools

There are various tools available for the SINGLE, for a wide range of applications.

The stainless steel base plate with a diameter of 406 mm can be easily converted to any available tool variant.

The necessary components and tools can be purchased separately.

More Information


Spare and Wearing Parts

Our machines are constantly being developed further, taking sustainability into account. This means for you that almost all spare parts are available and technical improvements can be retrofitted.

Just download your spare parts list here and order directly from us.

Spare Parts List


Accessories

Suitable accessories facilitate your daily work and extend the range of applications of your machine.

Discover the numerous possibilities!

From the diamond sanding disc to the Scrabber discs.

Accessories

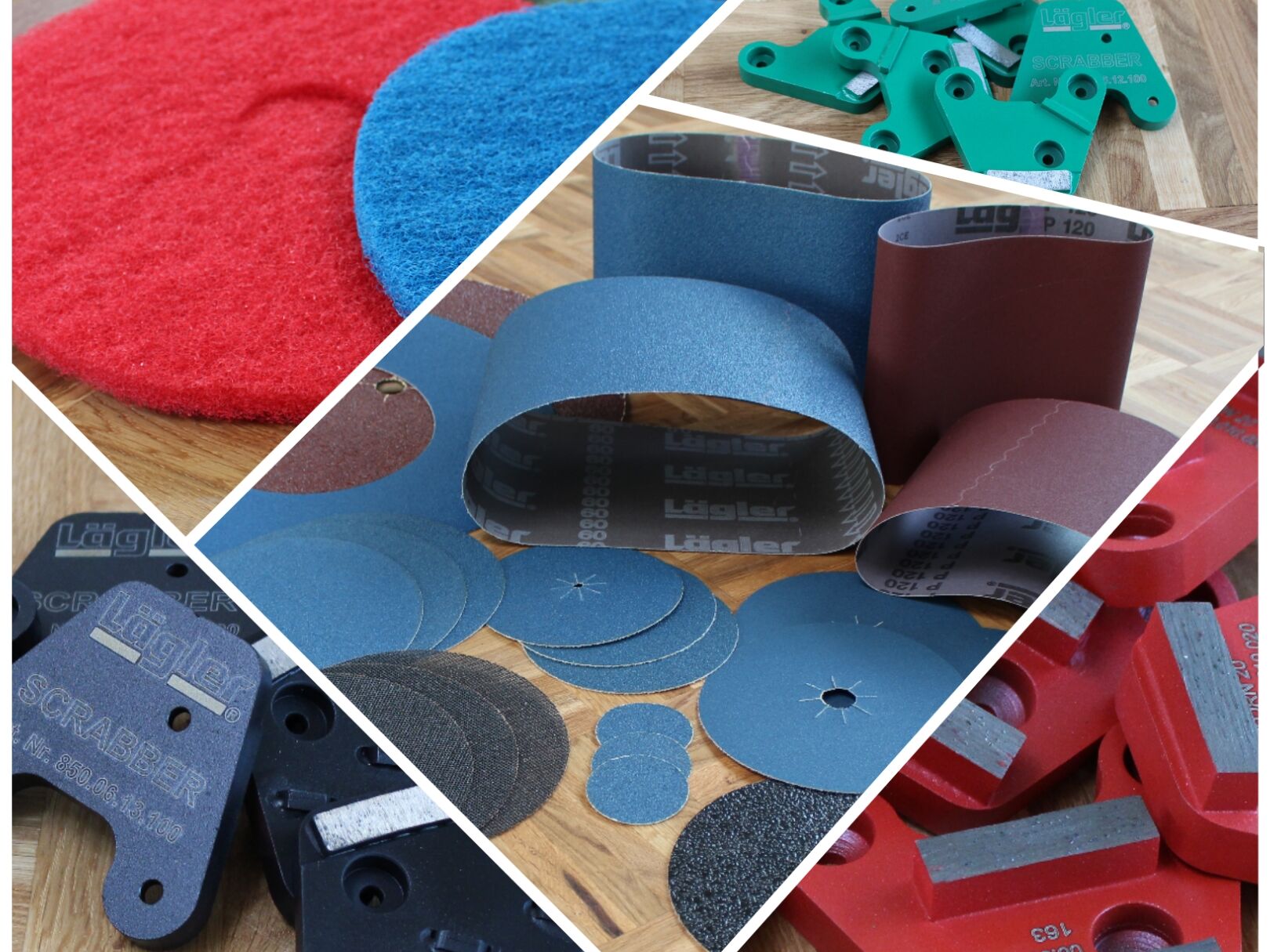

Abrasives

We supply a comprehensive range of abrasives as well as sanding and milling tools which match with all LÄGLER® machines and many different applications.

Our abrasives combine quality materials with high aggressiveness and a long-lasting sanding performance.

Get the most out of your machines with our abrasives!

Abrasives
