Machines

TRIO - The three disc sanding machine

When it comes to achieving a premium quality of a wooden surface, the TRIO is the right choice!

For example oiling and colouring a wooden floor create special challenges, which require a high surface quality. This task is mastered by the TRIO as well.

Its ergonomic construction allows easy handling with minimal physical strain. Both, the abrasive and the dust bag, can be changed quickly and easily.

Due to the integrated filter system, the dust extraction is very efficient, which enables almost dust-free sanding.

Operating Instructions FlyerVideo Playlist

Features


Technical Data*
Motor: single-phase alternating current with no-voltage release
Voltage: 230 V / 50 Hz
Motor power: 1.8 kW
Necessary fuse protection of mains supply: at least 16 A
Speed of disc: approx. 600 1/min (rpm)
Diameter of disc: 200 mm (approx. 7.9”)
Number of discs: 3
Overall weight of machine: 76 kg (approx. 167 lbs)
Particularities
✔ Robust housing
✔ High extraction capacity due to integrated filter system
✔ Smooth running
✔ Thermal overload protection of the motor
✔ User-friendly
✔ Near-edge and non-directional sanding
✔ Versatile application range
✔ Quick disc change
*) The TRIO is available on request in other versions (depending on the power supply in your country and the area of application).

Applications with the TRIO

The TRIO is mainly used for fine sanding of wooden floors.

It is also ideal for working on engineered wood flooring, even if it is floating.

With the brushing discs designed especially for the TRIO, natural looking and pronounced textured surfaces can also be created. This process enhances the wood grain.

Additionally it is also suitable for the treatment of cork floors.

Equipped with appropriate milling discs, it can also be used exclusively for the dry treatment of screeds and other sub-floors.

Applications


Milling Tools

Suitable exclusively for dry processing of screeds and other sub-floors!

Using the TRIO milling discs not only saves time but also reduces the physical strain during work.

Residual coatings and flooring remnants can be removed from screeds easily and quickly. Their use also significantly reduces the consumption of low-grit abrasives.

More Information


Spare and Wearing Parts

Our machines are constantly being developed further, taking sustainability into account. This means for you that almost all spare parts are available and technical improvements can be retrofitted.

Just download your spare parts list here and order directly from us.

Spare Parts List


Accessories

Suitable accessories facilitate your daily work and extend the range of applications of your machine.

Discover the numerous possibilities!

From the brushing discs to the milling discs.

Accessories

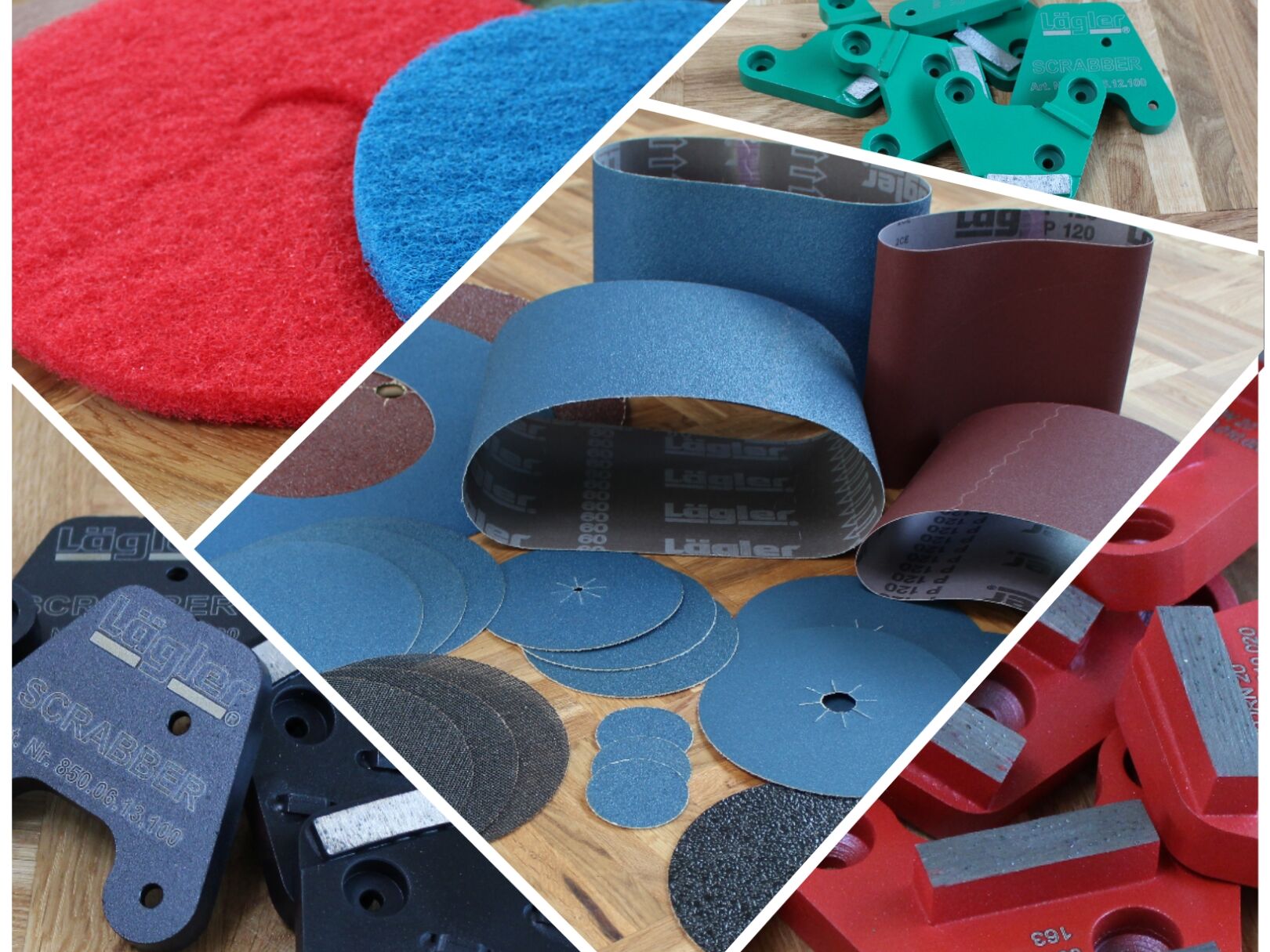

Abrasives

We supply a comprehensive range of abrasives as well as sanding and milling tools which match with all LÄGLER® machines and many different applications.

Our abrasives combine quality materials with high aggressiveness and a long-lasting sanding performance.

Get the most out of your machines with our abrasives!

Abrasives
